Sample 3 Array and Table

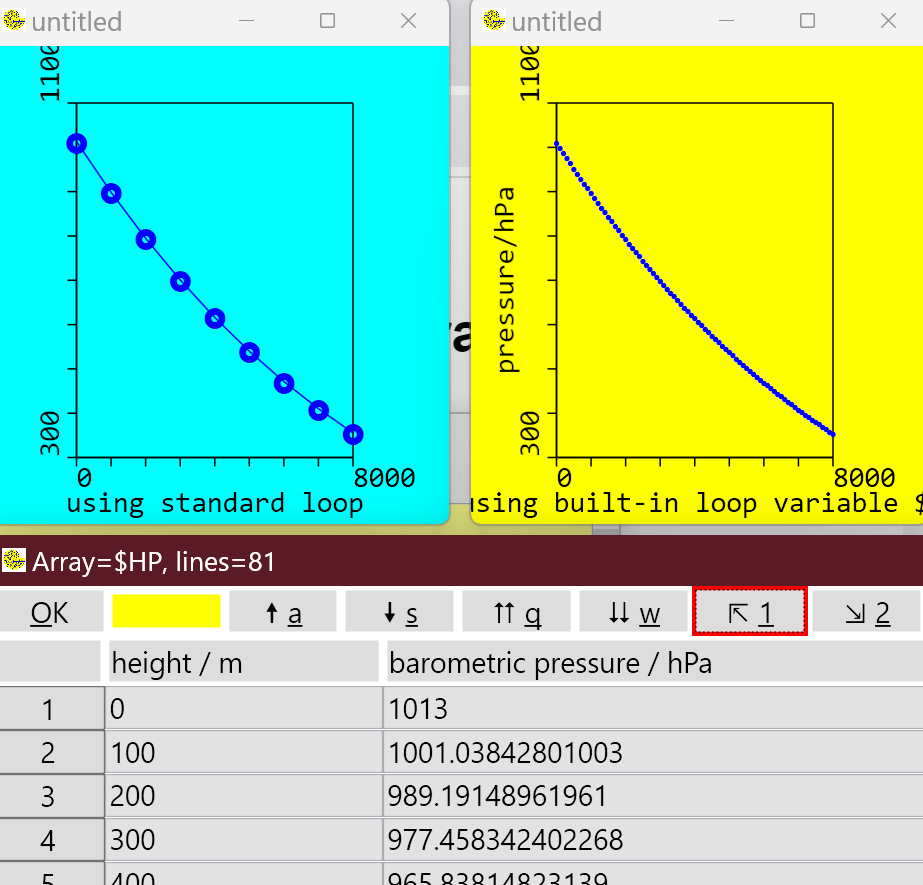

PdependsOnH() FUNCTION PdependsOnH() SYSTEM(BackGround=995, FontSize=19) DO step = 1, 80 ! step from 1 to 80 height = (step - 1) * 250 ! in 250m steps $HeiPres(step, 1) = height bp = BarometricPressure(height) $HeiPres(step, 2) = bp ENDDO F2() F3() F4() END FUNCTION F2() ! standard loop graph demonstrates single step plotting DLG(R=2,C=4,BackG=99, AXis=3, X=1,MIN=0,MAX=8000,TIt='LINE call per data point', Y=1,MIN=300,MAX=1100) DO i = 0, 8000, 250 height = i pressure = BarometricPressure(height) LINE(AX=3, X=height, Y=pressure, Symbol='○', Width=3, Draw=-900) ENDDO END FUNCTION F3() ! internal $ loop variable, depends on matrix $HeiPres(height, pressure) DLG(R=2,C=4,BackG=990, AXis=4, X=1,TI='altitude/m',MAX=8000,TIt='1 LINE call for matrix', Y=1,TI='pressure/hPa',MIN=300,MAX=1100) LINE(AX=4, Col=1, XVec=$HeiPres, Col=2, YVec=$HeiPres, Symbol='○', Draw=-9) END FUNCTION F4() ! show p(h) array and explain DLG(Nr=5, L=1/2,T=1/2, Array=$HeiPres, TItle=',height / m,barometric pressure / hPa') DLG(L=0,W=1/2, Nr=6, B='OK, show script', B='Quit HicEst', XEQ='SYSTEM(QUIT=1)', E='#Explain')
#Explain We calculate the atmospheric pressure as a function of altitude You need to know: . Line 1 is always executed at start. . A FUNCTION call auto-runs the script. . This script starts with FUNCTION PdependsOnH() . To see the code: hit ESCAPE . All 4 windows are modeless: code does not wait for closure . NR=.. or AX=.. assign the numbers for modeless windows A matrix $HeiPres with 81 rows and 2 columns is built . A matrix column can be either numeric or text Functions return a value with the RETURN ... statement Useful to know: . Rows=r and Cols=c divide the screen in r*c areas . Nr=wdwNr or AX=axNr will be within this screen area. . Press F1 over an item to show its value. . Vectors and matrices are edited with the DLG function. . Define FUNCTIONs should be at the end of the code.
END FUNCTION BarometricPressure(h) a = 0.0065 ! K/m T0 = 15 + 273 ! K M = 0.02896 ! kg/mol g = 9.81 ! m/s2 R = 8.314 ! J/K/mol = kg*m/s2 /K/mol P0 = 1013 ! hPa = h N/m2 = h m*kg/s2 /m2 BarometricPressure = P0 * ((1 - a*h/T0) ^ (M*g/R/a)) END #Explain We calculate the atmospheric pressure as a function of altitude You need to know: . Line 1 is always executed at start. . A FUNCTION call auto-runs the script. . This script starts with FUNCTION PdependsOnH() . To see the code: hit ESCAPE . All 4 windows are modeless: code does not wait for closure . NR=.. or AX=.. assign the numbers for modeless windows A matrix $HeiPres with 81 rows and 2 columns is built . A matrix column can be either numeric or text Functions return a value with the RETURN ... statement Useful to know: . Rows=r and Cols=c divide the screen in r*c areas . Nr=wdwNr or AX=axNr will be within this screen area. . Press F1 over an item to show its value. . Vectors and matrices are edited with the DLG function. . Define FUNCTIONs should be at the end of the code. ###
